200-V and 400-V power supply specifications A lineup of 400-V power
supply specification motors is provided in addition to the 200-V
power supply specification motors. A suitable motor can be selected
according to the local power supply specification.
SERVO MOTOR βM series - Compactness
The FANUC AC SERVO MOTOR β series is an economical AC servo motor
series most suitable for positioning peripheral devices of
industrial machines and machine tools, and has the features listed
below.
By employing a most advanced high-performance magnet and optimized
structure, the SERVO MOTOR βM series is made shorter and compact in
overall size.
- Superior acceleration performance
With a high maximum output torque and low inertia, high
acceleration performance and highly frequent positioning are made
possible.
- High-resolution detector
High-precision positioning is enabled by mounting a highly
reliable, high-resolution β pulse coder (optical encoder).
(Resolution: 65,536/rev.)
- High environmental resistance
The SERVO MOTOR βM series has high environmental resistance
satisfying IP65 as standard.
- Brake option An optional built-in holding brake is available.

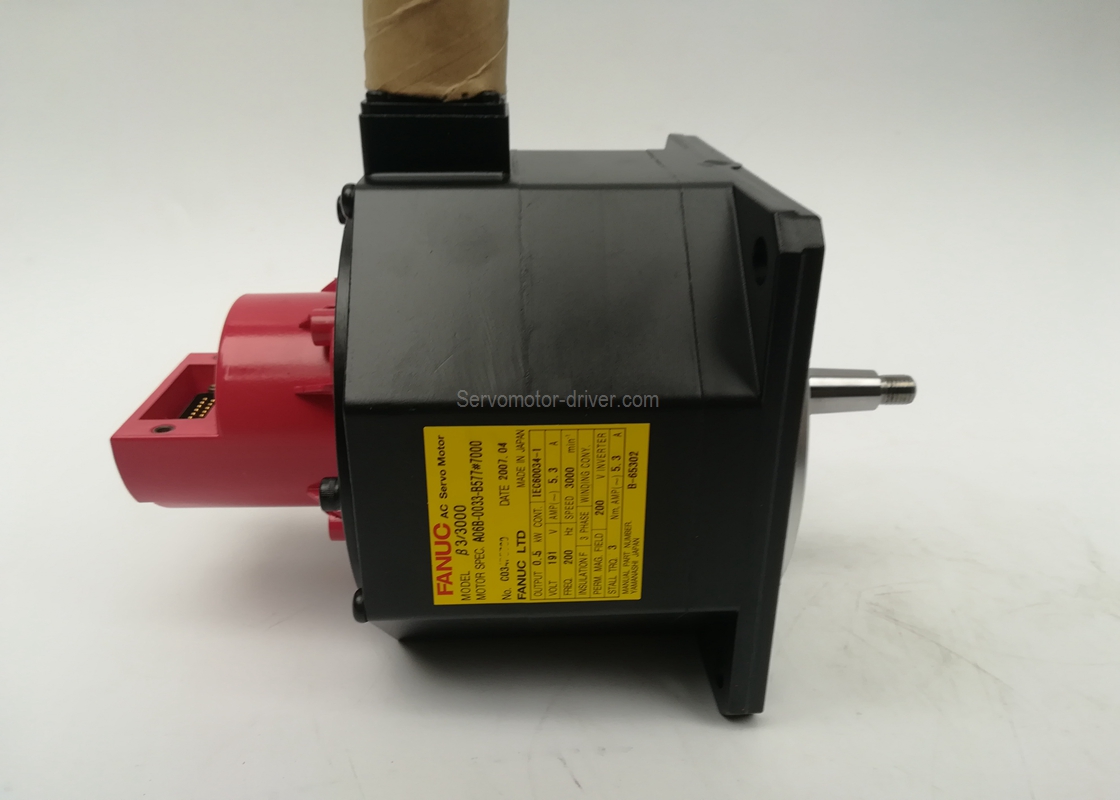

SERVO MOTOR β series - Compactness By employing a most advanced
high-performance magnet and larger frame, the SERVO MOTOR β series
is made compact and thin in overall size.
- High-resolution detector
High-precision positioning is enabled by mounting a highly
reliable, high-resolution β pulse coder (optical encoder).
(Resolution: 32,768/rev.)
- High environmental resistance
The SERVO MOTOR β series has high environmental resistance
satisfying IP65 as standard.
- Brake option
An optional built-in holding brake is available.
The allowable axis load of the motor shaft is as follows
| Motor model | Radial load | Axial load | Front bearing (reference) |
| βM0.2/4000 βM0.3/4000 | 6.4kgf | 4kgf | 699 |
| βM0.4/4000 βM0.5/4000 βM1/4000 | 20kgf | 6kgf | 6902 |
| β1/3000 β2/3000 | 25kgf | 8kgf | 6003 (standard) 6202 (with brake) |
| β3/3000 β6/2000 | 70kgf | 20kgf | 6205 |
