Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	GT1450-QMBD
Certification :	ROHS,CE,UL,CCC,VDE
Price :	Negotiable
Payment Terms :	Western Union, T/T, L/C,Paypal
Supply Ability :	1000pcs/Day
Delivery Time :	0-2 days

Add to Cart

Product Details
Company Profile

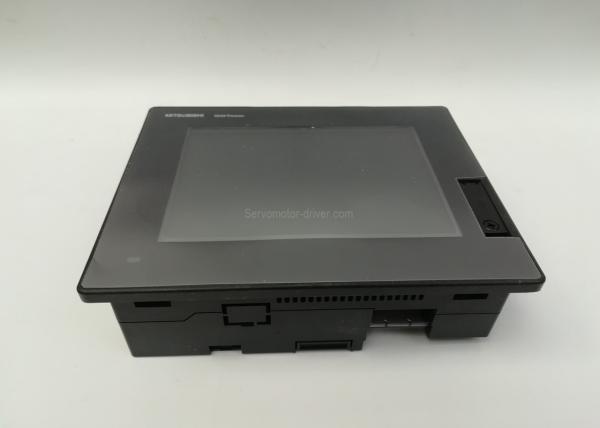

Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty

Original Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI

Mitsubishi touch screen GOT1000 Series

5.7" diagonal [320 x 240 dots], TFT monochrome (black/white), built-in battery

Product Name	Graphic Operation Terminal
Part number	GT1450QMBD GT1450 QMBD GT145OQMBD GT145O QMBD
Manufacturer brand	Mitsubishi
Description	Touch Screen HMI
Condition	100% brand new
Warranty	one year
Application	Industrial automation

Performance Specifications

Type		GT1450-QMBD
Display section	Display device	TFT monochrome (white/black) liquid crystal
	Screen size	5.7"
	Resolution(dots)	320 *240 dots
	Display size (WxH) mm	W115(4.53) ´ H86(3.39)[mm](inch) (Horizontal format)
	Display character	16-dot standard font: 20 characters ´ 15 lines, 12-dot standard font: 26 characters ´ 20 lines
	Display color	Monochrome (white/black), 16 scales
	Display angle	Left/Right: 80 degrees, Top: 80 degrees, Bottom: 60 degrees (Horizontal format)
	Intensity of LCD only	300[cd/m2]
	Intensity adjustment	8-level adjustment
	Life	Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25°C)
Backlight		LED (irreplaceable by a user) Backlight off/screen saving time can be set.
	Life	Approx. 70,000h or longer (Time for display intensity reaches 50% at the operating ambient temperature of 25°C)
Touch panel	Type	Analog resistive film touch panel
	Key size	Minimum 2*2 dots (per key)
	Number of points touched simultaneously	Simultaneous presses not allowed. (Only 1 point can be touched.)
	Life	1 million times or more (operating force 0.98N max.)
Memory	C drive	Flash memory (Internal), for storing project data (9Mbytes) and OS
Memory	Life (Number of write times)	100,000 times
Battery		GT11-50BAT lithium battery
	Type	Magnesium maganese dioxide lithium primary battery
	Backup target	Clock data, alarm history, recipe data, time action setting value, advanced alarm/advanced recipe, logging, hardcopy and SRAM user area
	Life	Approx. 5 years (Operating ambient temperature of 25°C)

Power Supply Specifications

Item	GT1450-QMBD
Input power supply voltage	24VDC (+10% -15%), ripple voltage 200mV or less
Fuse (built-in, not exchangeable)	1.6A
Power consumption	7.68W (320mA/24VDC) or less
At backlight off	6.72W (280mA/24VDC) or less
Inrush current	30A or less (26.4V) 2ms
Permissible instantaneous power failure time	Within 5ms
Noise immunity	Noise voltage: 1000Vp-p, Noise width: 1ms (by noise simulator of 30 to 100Hz noise frequency)
Dielectric withstand voltage	500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance	10MW or larger by insulation resistance tester (across power supply terminals and earth)
Applicable wire size	For power supply: 0.75[mm2] or more, For grounding: 2[mm2] or more
Applicable solderless terminal	Solderless terminal for M3 screw RAV1.25-3, V2-N3A, FV2-N3A
Applicable tightening torque (Terminal block terminal screw)	0.5 to 0.8[N·m]

Why choose us?	1. Best price and large stock
	2. Clients from USA, Europe, Mexico, Pakistan,Singpore, etc. purchase large quantity
	3. Good service and One year warranty
	4. Our company has good resources in china, and we have good partners.
	5. Our company try to solve all problem for you regards product.
	7. Fast response and professional answer.
	8. Welcome to contact us for cooperation!
