Graphic Operation Terminal Touch Screen HMI Black Mitsubishi GT1150-QLBDQ

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	GT1150-QLBDQ
Certification :	ROHS,CE,UL,CCC,VDE
Price :	Negotiable
Payment Terms :	Western Union, T/T, L/C,Paypal
Supply Ability :	1000pcs/Day
Delivery Time :	0-2 days

Add to Cart

Product Details
Company Profile

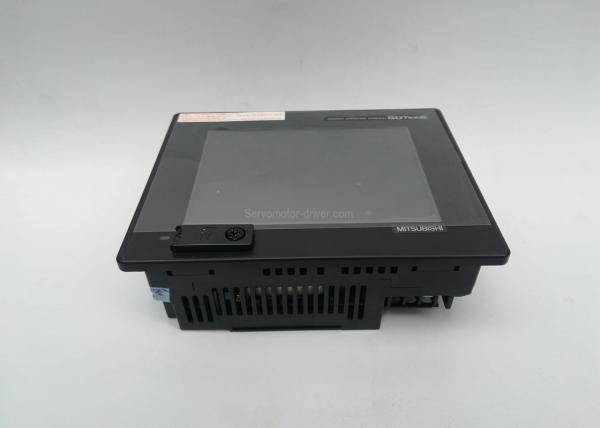

Graphic Operation Terminal Touch Screen HMI Black Mitsubishi GT1150-QLBDQ

Original Mitsubishi GT1150-QLBDQ Graphic Operation Terminal Touch Screen HMI

5.7" screen,320x240 dots, STN monochrome LCD (black/white, 16 scales), built-in battery and backlight, built-in bus interface for
connecting to the QCPU (Q mode) and motion controller CPU (Q series), built-in serial interface

Mitsubishi GOT1000 Series Touch Screen HMI 5.7 inch LCD 320 x 240pixels

Product Name	Graphic Operation Terminal
Part number	GT1150QLBDQ GT1150 QLBDQ GT115OQLBDQ GT115O QLBDQ
Manufacturer brand	Mitsubishi
Description	Touch Screen HMI
Condition	100% brand new
Warranty	one year
Application	Industrial automation

GT11 Dedicated to Bus Connection

Built-in Interface Specifications
item		GT1150-QLBDQ
Built-in interface	BUS	Bus interface for connecting to the QCPU (Q mode) and motion controller CPU (Q series) 1ch Application : For communicating with a programmable controller
	RS-232	Conforming to serial RS232 standard, 1ch Transmission speed: 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : D-sub 9-pin (Male) Application : Bar code reader connection, Personal computer communication (Project data upload/download, OS installation, transparent function)
	USB	Conforming to serial USB (Full Speed 12Mbps), device, 1ch Application: Personal computer communication (Project data upload/download, OS installation, transparent function)
	CF card	Conforming to PCMCIA, compact flash slot, 1ch Connector shape : Dedicated for TYPE I Application : Data transfer, data storage

Power Supply Specifications

Item	GT1150-QLBDQ
Input power supply voltage	24VDC (+10% -15%), ripple voltage 200mV or less
Fuse (built-in, not exchangeable)	1A
Power consumption	7.92W (330mA/24VDC) or less
At backlight off	5.04W (210mA/24VDC) or less
Inrush current	26A or less (26.4V) 4ms
Permissible instantaneous power failure time	Within 10ms
Noise immunity	Noise voltage: 500Vp-p, Noise width: 1ms (by noise simulator of 25to 60Hz noise frequency)
Dielectric withstand voltage	500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance	10MW or larger by a 500VDC insulation resistance tester (across power supply terminals and earth)
Applicable wire size	0.75 to 2[mm2]
Applicable solderless terminal	Solderless terminal for M3 screw RAV1.25-3, V2-N3A, FV2-N3A
Applicable tightening torque (Terminal block terminal screw)	0.5 to 0.8[N·m]

Why choose us?	1. Best price and large stock
	2. Clients from USA, Europe, Mexico, Pakistan,Singpore, etc. purchase large quantity
	3. Good service and One year warranty
	4. Our company has good resources in china, and we have good partners.
	5. Our company try to solve all problem for you regards product.
	7. Fast response and professional answer.
	8. Welcome to contact us for cooperation!
