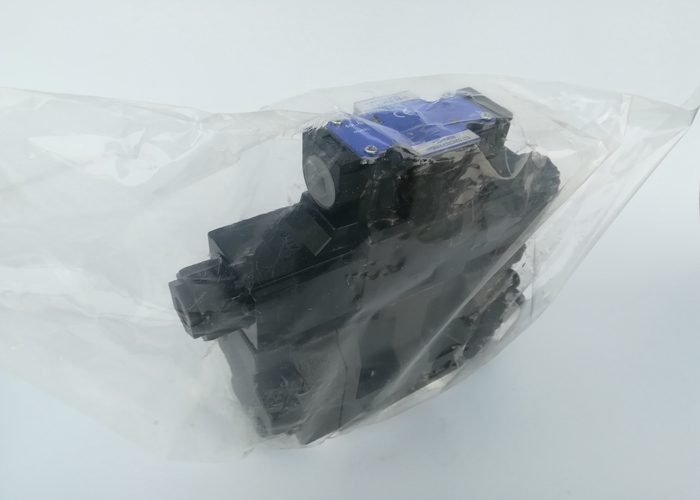

Yuken Electromagnetic Valve DSHG-03-3C4-T-A100-14
DSHG-03-3C4-T-A100-14
Electro-hydraulic valve DSHG series
1. Electro-hydraulic directional valve DSHG series of internal oil
drain must be maintained higher than the tubing pressure 0.45MPa
above, in order to prevent the tubing back pressure is too high,
please use the leak type (D), to ensure that the electro-hydraulic
valve moves accurately.
2. Electro-hydraulic directional control valve DSHG series maximum
flow with the valve in different forms, the median P hole and T
hole communicating 3C6,3 C5 flow smaller.
3.Electro-hydraulic valve DSHG series of external pilot pressure
used, need more than 0.45MPa. 3C3, 3C5, 3C6, 3C60 spool please use
P space. Electro-hydraulic valve DSHG-04,06,10 must be used in
conjunction with the solenoid valve, single head with 02-2B2,
double head with 02-3C4.
The scope of products
- Injection molding machine
- Die-casting machine industry
- Leather machinery
- Shoe machine industry
- The cost of machinery
- Curing machinery
- Hydraulic molding machine
- Stretching machine
- Ceramic press and other automatic hydraulic machine tool industry
Electrohydraulic Control Valve DSHG Type Description
DSHG Item Instruction | -06 Speicification | -3C4 Spool function | -A2 Coil type | 5 Frequency | -P control method | -D Leakage method |
DSHG:
Junction box type (JIS)
DSHG-N:
Plug type (DIN) |
04:16 latus rectum
(1/2")
06:25 latus rectum
(3/4")
10:32 latus rectum
(1 1/4") |
See Sample spool table | A1:AC 110V
A2:AC 220V
A3:AC 380V
D1:DC 12V
D2:DC 24V
R1:RF 110V
R2:RF 220V
-: No mark -: sit in this key | 5:50HZ
6:60HZ
Direct current omitted | No mark: Internal control (standard type) P: external control
| No mark: Internal diarrhea (standard type) D: leaked
|
| DSHG-06-3C6-E-A120-535 | DSHG-06-2B2-C2-T-A100-53 |
| DSHG-06-2B9A-ET-D24-53-L | DSHG-03-3C2-A120-N-14 |
| DSHG-03-3C10-T-D24-14 | DSHG-06-3C6-A100-53 |
| DSHG-06-2B4B-E-D24-N1-53 | DSHG-10-3C10-D24-N-43 |
| DSHG-06-3C2-C2-T-D12-53 | DSHG-04-2B2-D24-N-52 |
| DSHG-04-3C3-A240-N-52 | DSHG-10-3C60-E-D12-N-43 |
| DSHG-04-3C60-A120-N-52 | DSHG-06-3C4-C2-T-A120-N-53 |
| DSHG-06-3C60-C1-A120-N-53 | DSHG-06-2B2-D24-N-53-LS |
| DSHG-06-2N2-A200-53 | DSHG-03-3C2-C1C2-T-D12-N1-14 |
| DSHG-04-2B2-T-A120-N-52 | DSHG-10-3C2-A100-43 |
| DSHG-06-3C4-C2-D24-N-53 | DSHG-04-3C2-T-R110-52 |
| DSHG-10-3C60-D24-43 | DSHG-06-3C2-C2-E-A120-53 |
| DSHG-04-2B2-C2-A120-52 | DSHG-10-2N2-C1C2-T-A100-43 |
| DSHG-06-2B4-T-D24-N-53 | DSHG-04-3C2-ET-D24-N1-52 |
| DSHG-06-3C4-C1C2-D24-53 | DSHG-06-3C2-C1C2-A120-N-53 |
| DSHG-03-2N2-D12-N1-14 | DSHG-06-3C40-T-D24-53 |
| DSHG-04-3C7-A100-52 | DSHG-10-3C6-A120-43 |
| DSHG-04-3C60 | DSHG-04-3C40 |
| DSHG-04-2B2 | DSHG-04-3C4 |
| DSHG-04-2D2 | DSHG-04-3C2 |
| DSHG-06-3C2 | DSHG-06-3C60 |
| DSHG-06-3C40 | DSHG-06-2B2 |
