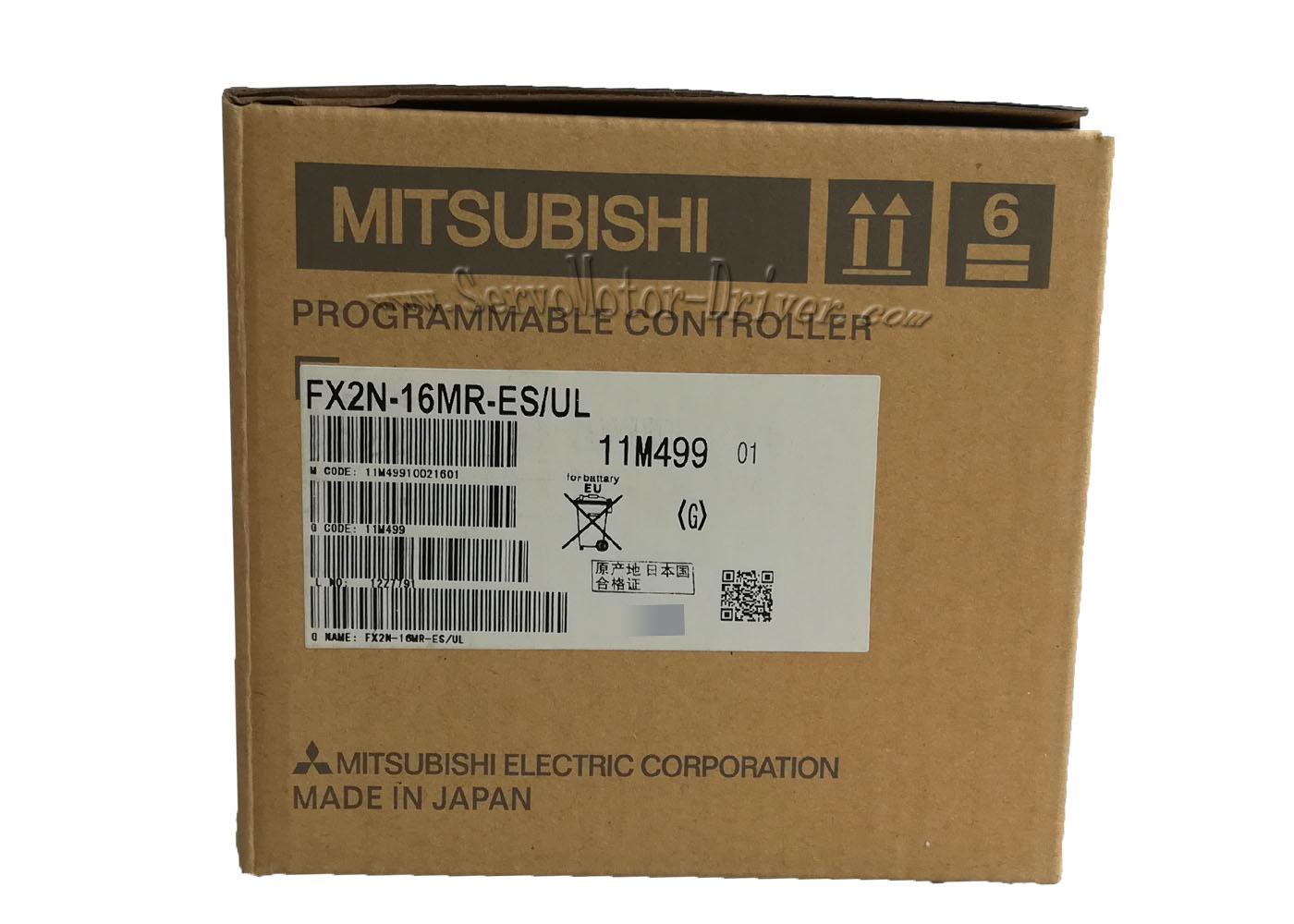

FX2N PLC

The most advanced series in the FX family of PLC’s. It is compact, offers extremely fast program execution, accepts up to eight special function modules and provides maximum flexibility and control power for all your factory automation applications.

Use a cable at least 2mm2 (AWG14) to ground equipment. Ground resistance must
be less than 100W (class 3). Note that the ground cable must not be connected to the
same ground as the power circuits. Grounding is recommended but if a proper ground
cannot be provided the PC will still operate correctly without being grounded.
Attention:

1. Don’t link the 24V terminals.
2. Never connect an external power supply to the PC’s 24V terminal.
3. External DC supplies should not compromise the SELV aspects of the FX/FX2C
products.
FX: Without extension block:FX-16M, FX-24M, FX-32M/E = 24V DC Max. 250mA
Version changes:V 1.2

FX-48M/E, FX-64M, FX-80M, FX-128M = 24V DC, 460mA
FX-48M/E, FX-64M, FX-80M, FX-128M = 24V DC, 400mA V 2.0

In addition to the features already listed, the FX2N also offers the following:

Choice of 6 I/O sizes, expandable up to 256 I/O
High processing speed, 0.08μs/basic instruction
125 applied instructions, 3072 auxiliary relays, 256 timers, 235 counters, 8000 data registers
8K step RAM program memory (expandable to 16K with EEPROM)
24Vdc 460mA output for sensors etc (250mA for 16 and 32 I/O)
100% backward compatibility with older FX units
