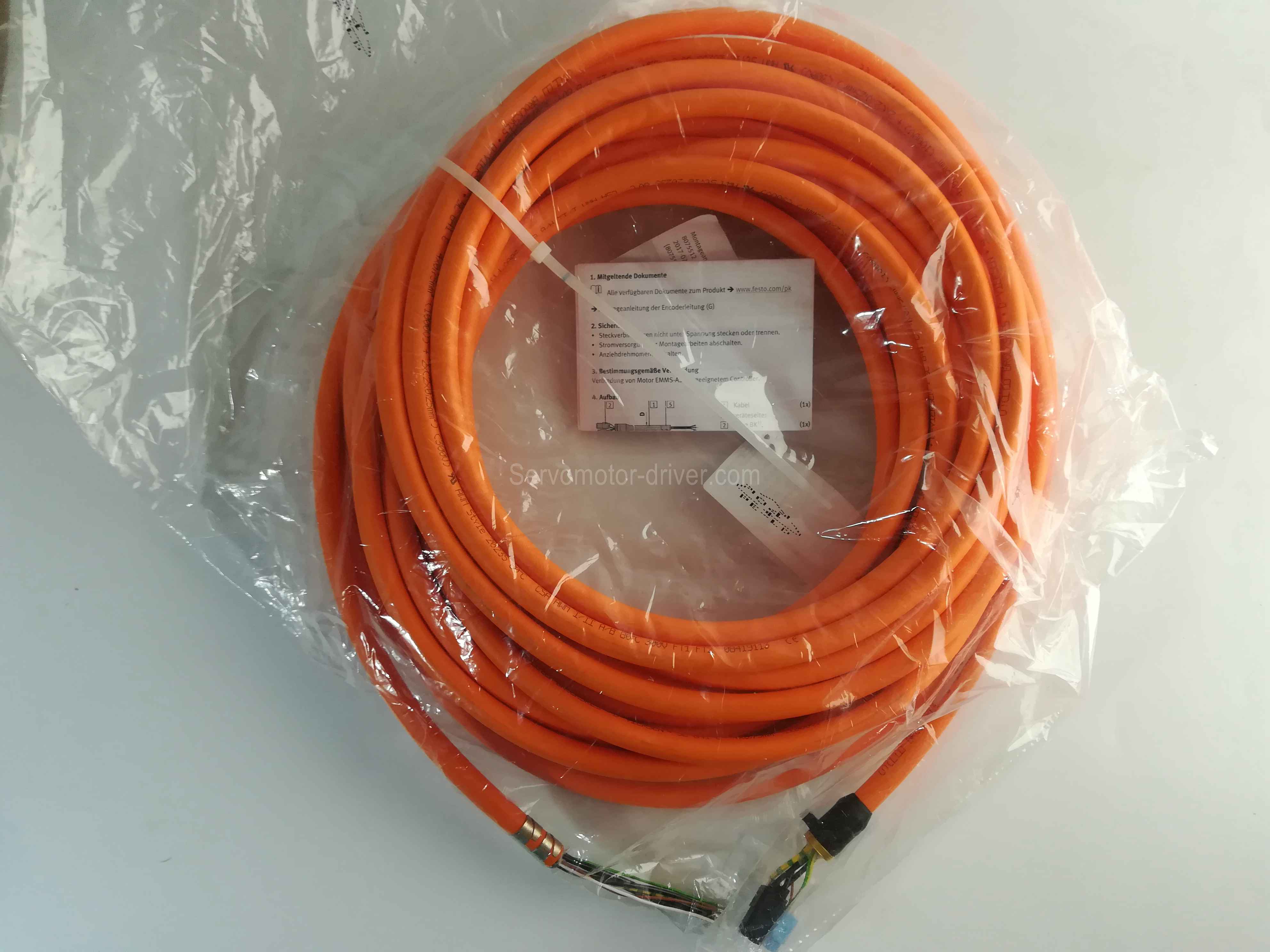

Festo 15 Meter Motor cable Connecting Cable NEBM-T1G8-E-15-Q7N-LE

Conforms to standard EN 61984 Cable identification Without inscription label holder Electrical connection 1, function Field device side Electrical connection 1, design Angular Electrical connection 1, connection type Plug socket Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology ITT M3 Electrical connection 1, number of pins/wires 10 Electrical connection 1, occupied pins/wires 8 Electrical connection 2, function Controller side Electrical connection 2, connection type Cable Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 8 Electrical connection 2, occupied pins/wires 8 Operating voltage range DC 0 ... 630 V Note on operating voltage range DC 0 - 48 V for 0.25 mm² Operating voltage range AC 0 ... 630 V Note on operating voltage range AC 0 - 48 V for 0.25 mm² Acceptable current load at 40°C 12 A Note on acceptable current load at 40°C 3 A for 0.25 mm² Surge strength 4 kV Note on surge resistance 0.5 kV for 0.25 mm² Cable length 15 m Cable attribute Suitable for chain link trunking Bending radius, fixed cable installation >= 55 mm Bending radius, flexible cable installation >= 110 mm Cable diameter 11 mm Cable structure 4x0,75+2x(2x0,25) Shielded Nominal conductor cross-section 0.25 mm2 0.75 mm2 Wire ends Wire end ferrule Protection class IP65 Note on degree of protection in assembled condition Ambient temperature -50 ... 90 °C Ambient temperature with flexible cable installation -40 ... 90 °C CE symbol (see declaration of conformity) according to EU low voltage guideline Materials note Conforms to RoHS Degree of contamination 3 Material cable sheath TPE-U(PUR) Cable sheath color Orange
